Curtain Tensioner HT

Description

This is the Curtain Tensioner HT (HT type curtain tensioner) from VANGUARD INDUSTRIAL brand. It is an industrial grade curtain accessory mainly used to fix and adjust curtain tension, ensuring stable operation of curtains. It is commonly used in scenarios such as electric roller blinds and large hanging curtains.

Product Basic Information
Brand & Positioning: Produced by VANGUARD INDUSTRIAL, specializing in industrial-grade curtain system accessories designed for scenarios demanding high stability and durability.

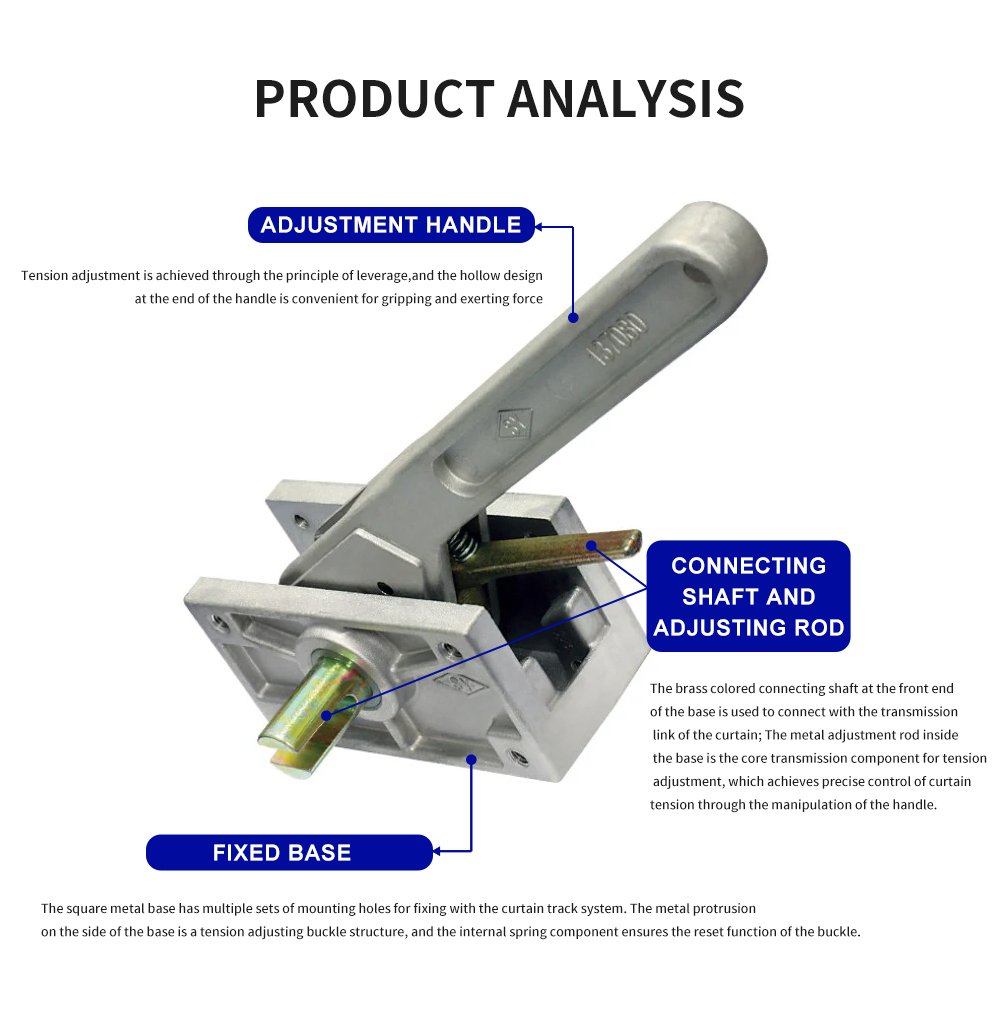

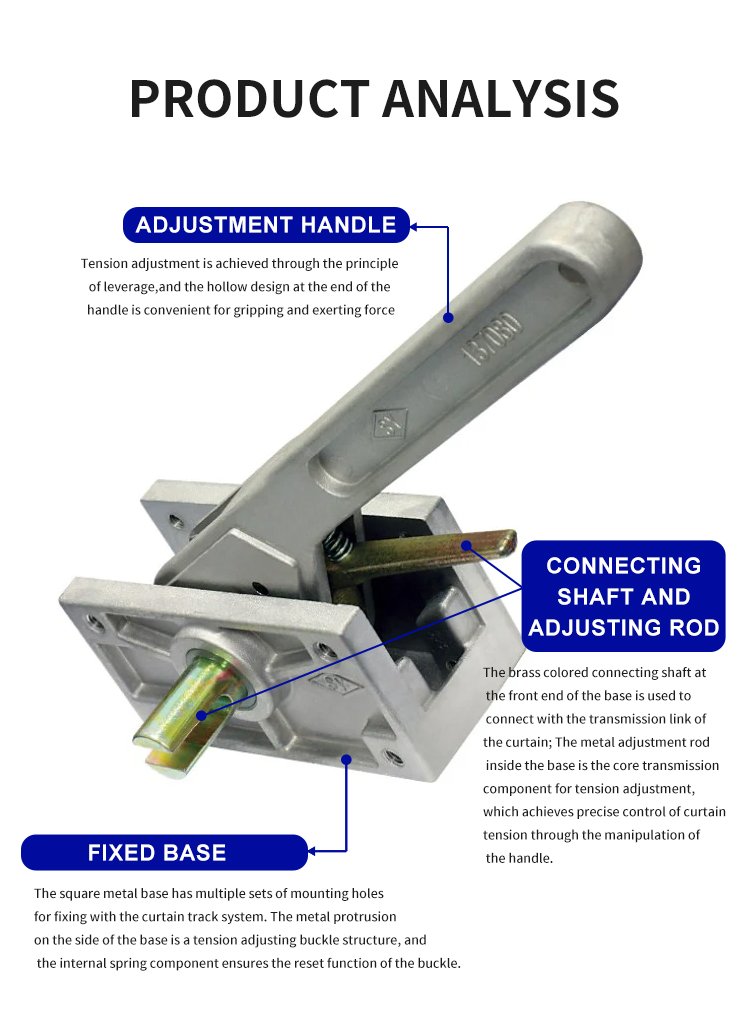

Function and Structure: The lever handle and metal buckle mechanism allow manual adjustment of curtain tension to prevent sagging or swinging. The main body is made of metal, featuring a fixed base and adjustable rod, suitable for industrial or commercial curtain track systems.

Applicable scenarios
Suitable for curtain systems such as electric roller blinds and large hanging curtains that require precise tension control, ensuring smooth lifting and regular shape of curtains.
Can be used in industrial plants, commercial exhibition halls, large venues and other places that require high durability and stability of curtains.

Installation steps
Component assembly: First, install the terminal and terminal board L, insert them into the end to fasten the insulator, and move them about 5 millimeters in the direction of the arrow to facilitate the insertion of subsequent components.
Main body fixation: Fully insert the tensioner body into the end and tighten the insulator, and fix the terminal board L with fixing screws.
Insulation and terminal installation: Insert the insulation sheet into the side opening of the end fastening insulator, then insert the terminal, and finally insert the terminal board into the corresponding position.
Overall fastening: Use fixing screws to fully tighten the body, terminals, terminal board L, and end fastening insulators to ensure stable connection of all components.
Parameter details
Adaptation span: A single system can support a maximum span of 16 meters for ceiling curtains. If the span and area exceed this limit, multiple systems can be used in combination to achieve this.
Control method: Equipped with a dedicated control box, the curtains can be opened and closed, and can also be stopped at any middle position. After stopping, the preset state can be set at any position.
Structural features: Equipped with adjustable brake components, it can accurately control the tension of curtains, avoid sagging and shaking, and ensure stable operation.
