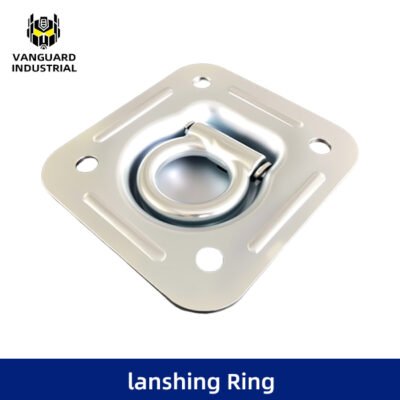

lanshing Ring 2000kg

Description

Product Core Introduction
Structural design: Adopting a square bottom mounting seat with a rotatable D-type movable pull ring, the base is reserved with 4 standard mounting holes, which can be embedded through bolts or welding; When not in use, the pull ring can completely sink into the groove of the base, with no protrusions on the surface, neither tripping nor being accidentally hooked by debris. When in use, pulling up the pull ring can quickly insert the strap and steel cable to complete the fixation.
Performance characteristics: The overall structure is made of thickened high-strength carbon steel through integral stamping, with a galvanized anti rust treatment on the surface. It has extremely strong shear and tensile resistance, and can withstand tensile loads of several tons. It is not easy to rust or get stuck even when used in humid and dusty outdoor conditions for a long time. It can also maintain stable locking performance in bumpy and heavy load scenarios.
📌 Main usage scenarios
In the field of logistics transportation, it is a standard accessory for box trucks, containers, refrigerated trucks, and RVs. It is installed on the bottom or side wall panels of the carriage, and is used with binding straps and steel wire ropes to fix the goods, avoiding inertial displacement, tipping, and even impact damage to the goods during vehicle start stop, turning, and sudden braking, greatly improving the driving safety of long-distance freight transportation.
In the field of special vehicles, it is widely used for the modification and fixation of engineering trailers, off-road vehicle trunks, and recreational trailers. It is used to bind engineering equipment, off-road equipment, and luggage materials, and is suitable for high-strength fixation requirements under off-road bumpy conditions.
Industrial and Storage Scenarios: Can be installed on warehouse floors, tooling platforms, and logistics turnover cages to secure heavy tooling and storage materials. It can also serve as an auxiliary anchor point for outdoor construction and lifting operations, providing reliable force fixing points for various scenarios that require heavy-duty binding.

Correct installation steps
Positioning holes: First, mark the corresponding positions of four installation holes on the installation surfaces such as the carriage floor, deck, and tooling platform. The hole size should match the aperture of the pull ring base, while ensuring that the thickness and load-bearing capacity of the installation substrate match the rated load of the pull ring, to avoid direct deformation of the thin plate under stress.
Fixed locking: Priority should be given to using matching high-strength bolts to insert and lock from the back. In heavy-duty scenarios, the base can also be directly welded to the metal installation surface. After installation, it should be confirmed that the base is completely attached to the installation surface without any curling or loosening, ensuring that the tension can be evenly distributed throughout the entire installation surface when subjected to force.
Function verification: After installation, manually pull up the D-ring to confirm that the pull ring can smoothly flip in the groove of the base without any jamming. After release, it can smoothly fall back into the base without any jamming or inability to return to its original position.
2、 Key points for standardized use
Suitable for load use: Before use, confirm the rated load-bearing capacity of the pull ring, and use it with corresponding tension levels of binding straps, steel cables, and flower basket screws. Overloading is strictly prohibited to avoid deformation and breakage of the pull ring.
Correct fastening force: Fully insert the strap/steel cable into the inner body of the D-ring, keeping the tension direction consistent with the force axis of the pull ring, to avoid local stress overload and damage to the pull ring caused by single point oblique force. It can be used as a fastening point in freight scenarios, combined with tie rods and tighteners to form a complete cargo fixing system, and can also be used as an anchor point for fixture fixing and outdoor construction.
Daily use precautions: When not in use, press the pull ring completely into the groove of the base, keeping the surface flat and without protrusions, to avoid tripping when personnel pass through, or being accidentally hooked by goods or debris; Regularly check whether the rotating shaft of the pull ring is corroded or stuck, and whether the installation bolts are loose. Clean up debris in a timely manner and supplement rust prevention and lubrication to maintain the reliable locking performance of the pull ring for a long time.
