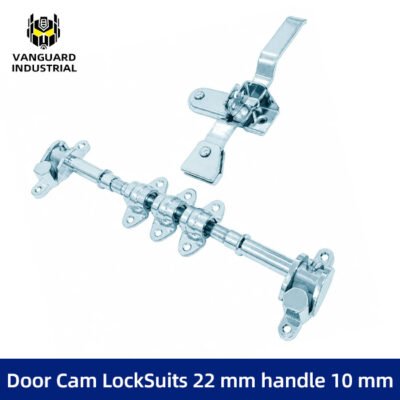

Door Cam LockSuits 22 mm handle 10 mm

Description

Introduction and User Manual for Door Cam Lock
📋 Basic product information
Adaptation specification: compatible with 22 mm handles, with a lock core shaft diameter of 10 mm
Appearance and material: The overall structure is made of bright chrome-plated metal, with a smooth and rust-proof surface, high strength, and resistance to deformation
Structural composition: It is divided into two parts: a long-rod type multi-point lock rod assembly and a handle lock latch assembly, which can achieve multi-point synchronous locking of cabinet doors over a long distance
Typical application scenarios: refrigerated vehicle compartments, containers, industrial cabinets, large storage box doors, and other scenarios requiring high sealing and locking
🎯 Core product features
✅ Multi-point synchronous locking: The long rod structure can simultaneously drive multiple locking points to act in sync, ensuring even stress distribution around the long-sized box door and better sealing effect
✅ Rust-proof and Durable: The chrome metal plating is suitable for humid and dusty outdoor/industrial environments, making it less prone to rusting and sticking
✅ Easy to operate: The locking/unlocking action can be completed through a lever-type handle, without the need for additional complex tools
✅ Strong adaptability: With a standardized 22mm handle mounting position and 10mm lock shaft specification, it can directly replace conventional locks of the same type
🛠️ Basic usage instructions
Locking operation: After fully closing the door, pull the metal handle to the locking position, rotate the lock rod, and allow the lock point to engage with the corresponding buckle position. This completes the locking process, and the door cannot be directly opened
Unlocking operation: Pull the handle in the opposite direction to rotate the lock rod, causing all lock points to disengage from the buckle simultaneously, thus directly opening the box door
Routine maintenance: Regularly add a small amount of lubricating oil to the rotating joints of the lock rod to prevent dust accumulation and subsequent jamming, thereby extending the service life of the lock
