TRANSPORT BOTTOM RAIL/SIDE COAMING

Description

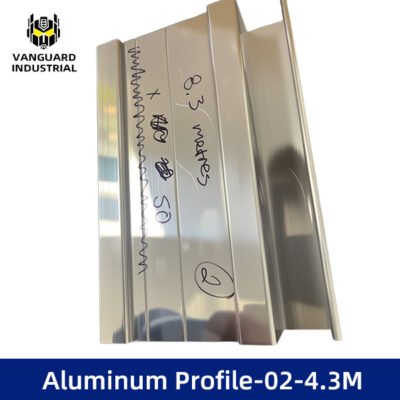

Adopting high-strength aluminum alloy integrated extrusion molding, the surface has been treated with high gloss mirror surface, which is smooth and not easy to accumulate dust. At the same time, it has natural anti-corrosion properties and is not easy to rust or age even when used in damp and dusty transportation conditions for a long time.
The surface of the profile is designed with multiple integrated reinforcement structures, which greatly improve the overall bending and impact resistance while retaining the core advantage of lightweight aluminum alloy. The overall weight is much lower than steel components of the same strength, which can directly reduce the weight of the transportation carrier and reduce operating energy consumption.
The 8.3-meter ultra long fixed length specification can significantly reduce the splicing process in long-distance laying scenarios, improving the overall structural sealing and reducing the difficulty and time cost of installation and construction.
The edges of the profile have been rounded and trimmed without sharp burrs, making it less likely to scratch operators during installation and use. It is also compatible with various supporting connectors and has strong assembly compatibility.

The installation method is as follows:
Pre installation positioning process
First, lay out and pre assemble the entire 8.3-meter long profile on the ground according to the construction drawings, align the concave convex interlocking structure at both ends of the profile in advance, and confirm that the joint interface gap is controlled within 3mm to avoid the trouble of secondary adjustment at high altitude or inside the carriage.
Main body fixed installation
For the steel structure base of carriages/containers: First, weld steel connection plates at the corresponding positions of the steel structure, and then use stainless steel bolts to lock the side reinforcement ribs and connection plates of the aluminum profiles. There is no need to open additional holes in the stress area of the profiles to ensure structural strength.
For aluminum car body substrates: 90 ° concealed connections can be directly made using corner codes and L-shaped corner groove connectors. The connectors can be embedded into the preset slots of the profiles, and the T-shaped nuts can be tightened to complete the fixation. There is no need for welding throughout the entire process, making it environmentally friendly and easy to disassemble and assemble.
Debugging and acceptance
After installation, adjust the overall levelness of the profile, confirm that the whole long rail is free of edge warping and shaking, and the splices of adjacent profiles are kept straight. Finally, complete the embedding of the side sealant strip to ensure the waterproof and dust-proof performance of the overall structure.
